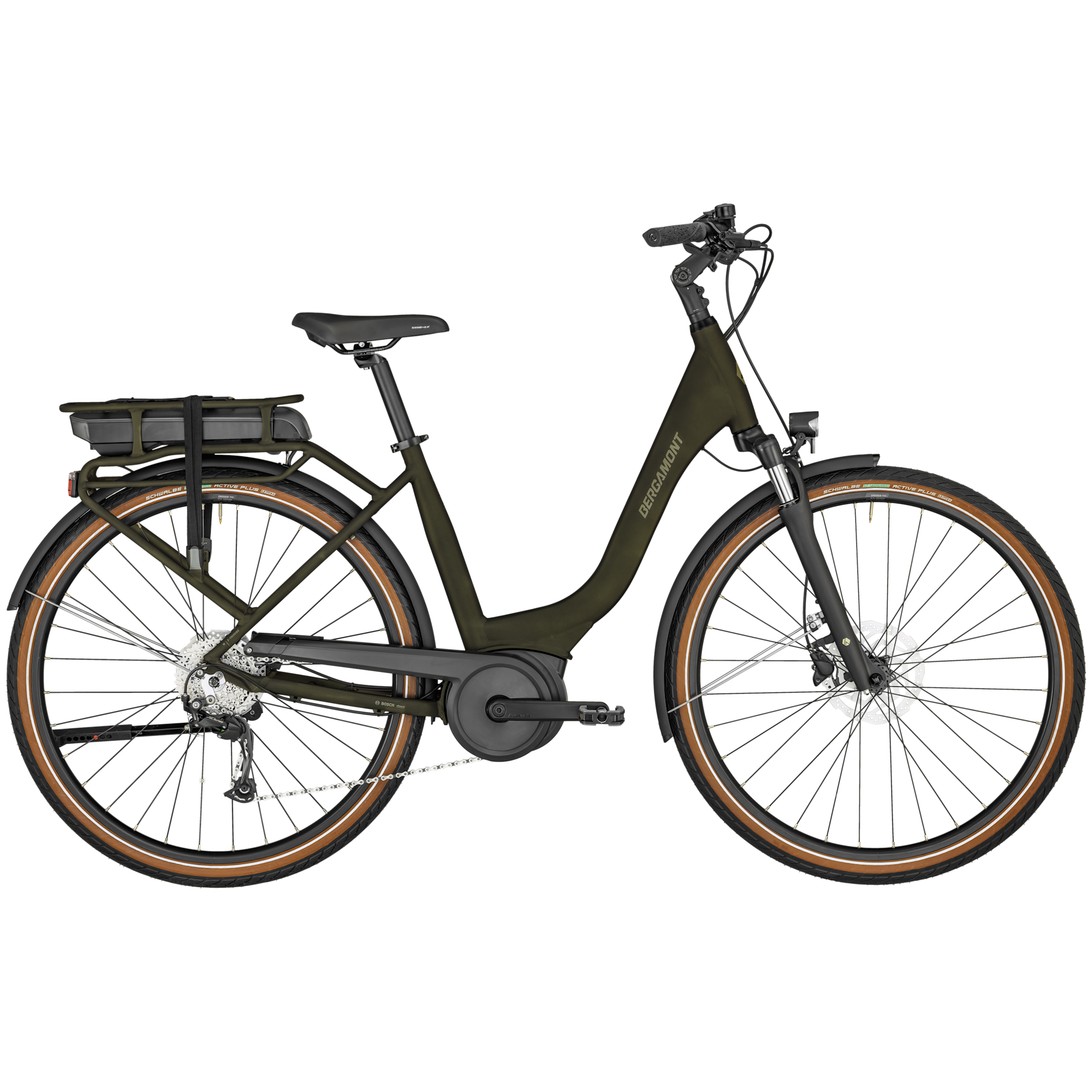

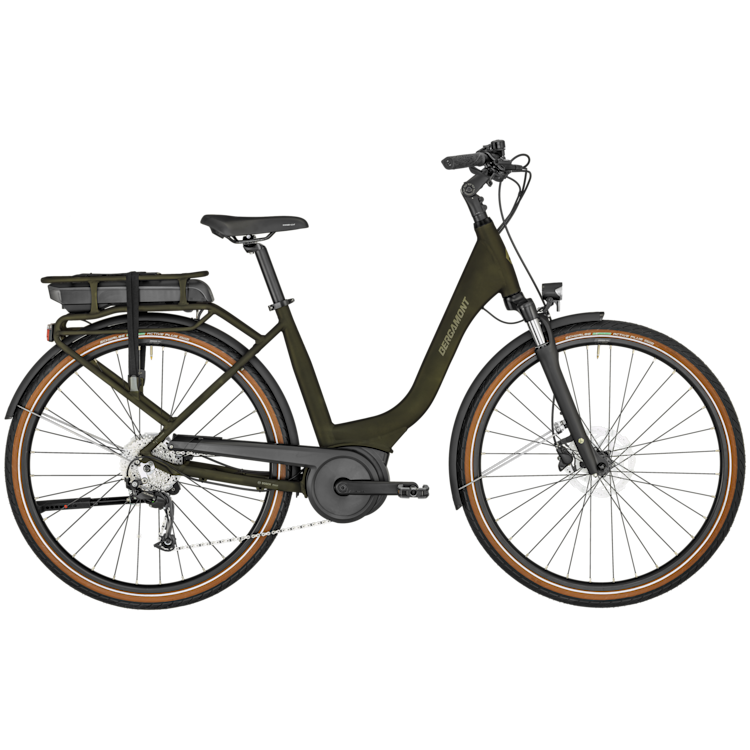

Bergamont E-Horizon 5 RT

Model : 290992

Bergamont E-Horizon 5 RT

Key Features

  • 28", lite AL-6061 tubing, RackType battery
  • Suntour NEX E25, 63 mm
  • Shimano, 1x9
  • Bosch Gen 3 Active Line Plus, 500 Wh battery
  • Shimano BR-MT200, hydraulic disc
  • BGM Pro X17 rims, Shimano hubs
  • Schwalbe Energizer Active Plus, Reflex, 50-622
  • Hermans H-Black MR4 LED / Herrmans LED

1. Size

Size chart

£2,049.00

Find a dealer
SPECIFICATIONS
  • Smart and elegant for town and country: uncomplicated low step-through frame with silent but powerful Bosch drive unit and an unobtrusive, rack-mounted 500 Wh battery.

    condition of usage 2

  • Frame

    28", lite AL-6061 tubing, RackType battery

  • Fork

    Suntour NEX E25 DS, 63 mm

  • Drive Unit

    Bosch Active Line Plus, Gen. 3, 250 W, 36 V, max. 25 km/h

  • Battery

    Bosch RackType, 36 V Li Ion, 500 Wh

  • Display

    Bosch Purion

  • Charger

    Bosch Compact Charger, 2A

  • Rear Derailleur

    Shimano RD-M3100, Shadow

  • Shifters

    Shimano SL-M3100, 1x9-speed, rapidfire plus-shifter

  • Crankset

    Miranda, 38t

  • BB-Set

    Bosch, Isis

  • Chain

    KMC e9S

  • Cassette

    Shimano CS-HG400, 11-36t

  • Brake Levers

    Shimano BL-MT200, hydraulic disc brake

  • Brakes

    Shimano BR-MT200, hydraulic disc brake

  • Rotor

    Front: Shimano SM-RT10, 180 mm
    Rear: Shimano SM-RT10, 160 mm

  • Handlebar

    BGM Comp, riserbar, backsweep: 33°

  • H'stem

    BGM Pro, adjustable

  • Seatpost

    BGM alloy

  • Seat

    Selle Royal Essenza Plus, lady

  • Headset

    A-Headset, semi-integrated, 1-1/8"

  • Hub (Front)

    Shimano, centerlock, disc, quick release

  • Hub (Rear)

    Shimano, centerlock, disc, quick release

  • Spokes

    steel, black

  • Rims

    BGM Pro X17, disc, eyelets

  • Front Tire

    Schwalbe Energizer Active Plus, reflective stripe, 50-622
    Tube: Impac SV29

  • Rear Tire

    Schwalbe Energizer Active Plus, reflective stripe, 50-622
    Tube: Impac SV29

  • Lights

    Front: Herrmans H-Black MR4, LED
    Rear: Herrmans H-Trace E, LED

  • Rack

    Integrated in frame

  • Pedals

    Trekking alloy

  • Accessories

    Kickstand: Ursus rear kickstand

  • Approx weight in KG

    26,8

  • Color

    matt olive green

  • Fender

    Curana Apollo, with stainless stays

  • Frame size

    42/44/48/52 cm

  • Chain cover

    Hesling

  • Grips

    BGM Comfort, Ergo, double density, clamp version

  • Max. System Weight

    130,0 kg
    The overall weight includes the bike, the rider, the equipment and possible additional luggage.
Use
No Radar Chart Available Currently
Geometry
Geometry of Bergamont E-Horizon 5 RT
