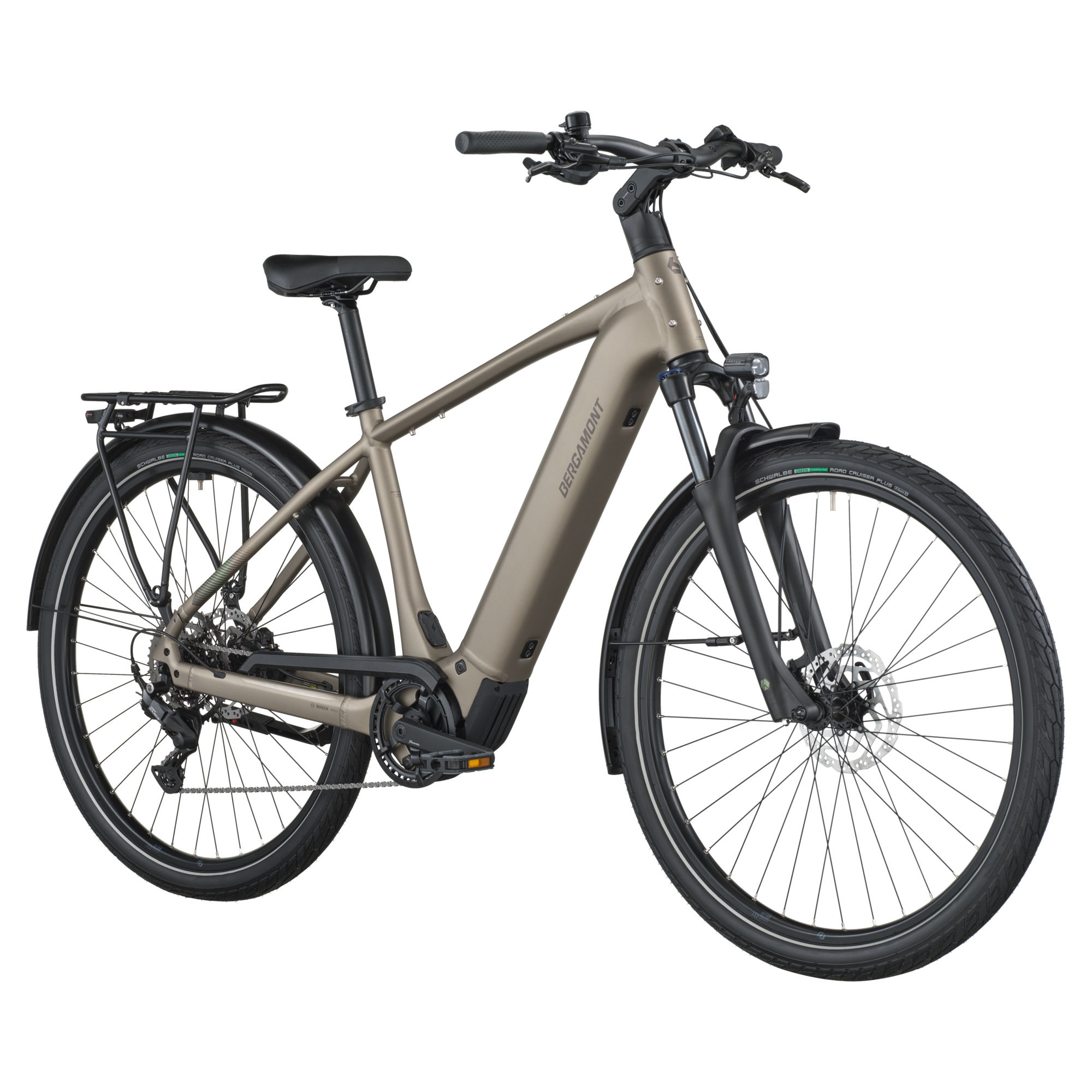

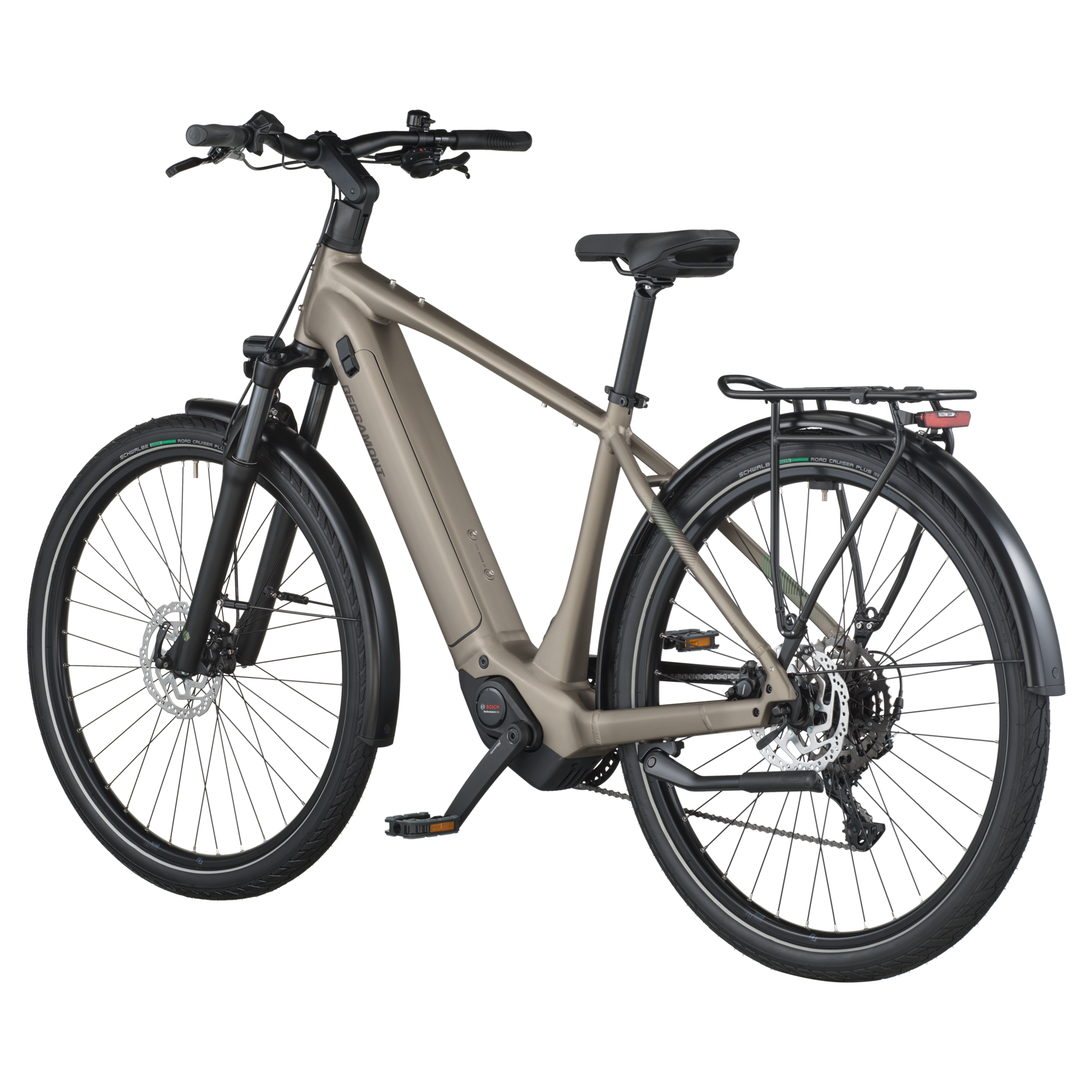

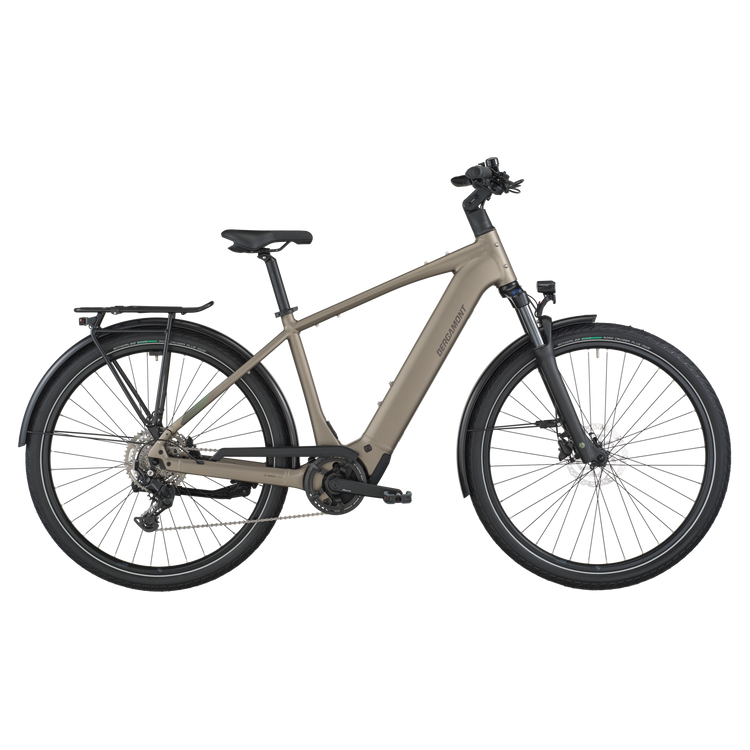

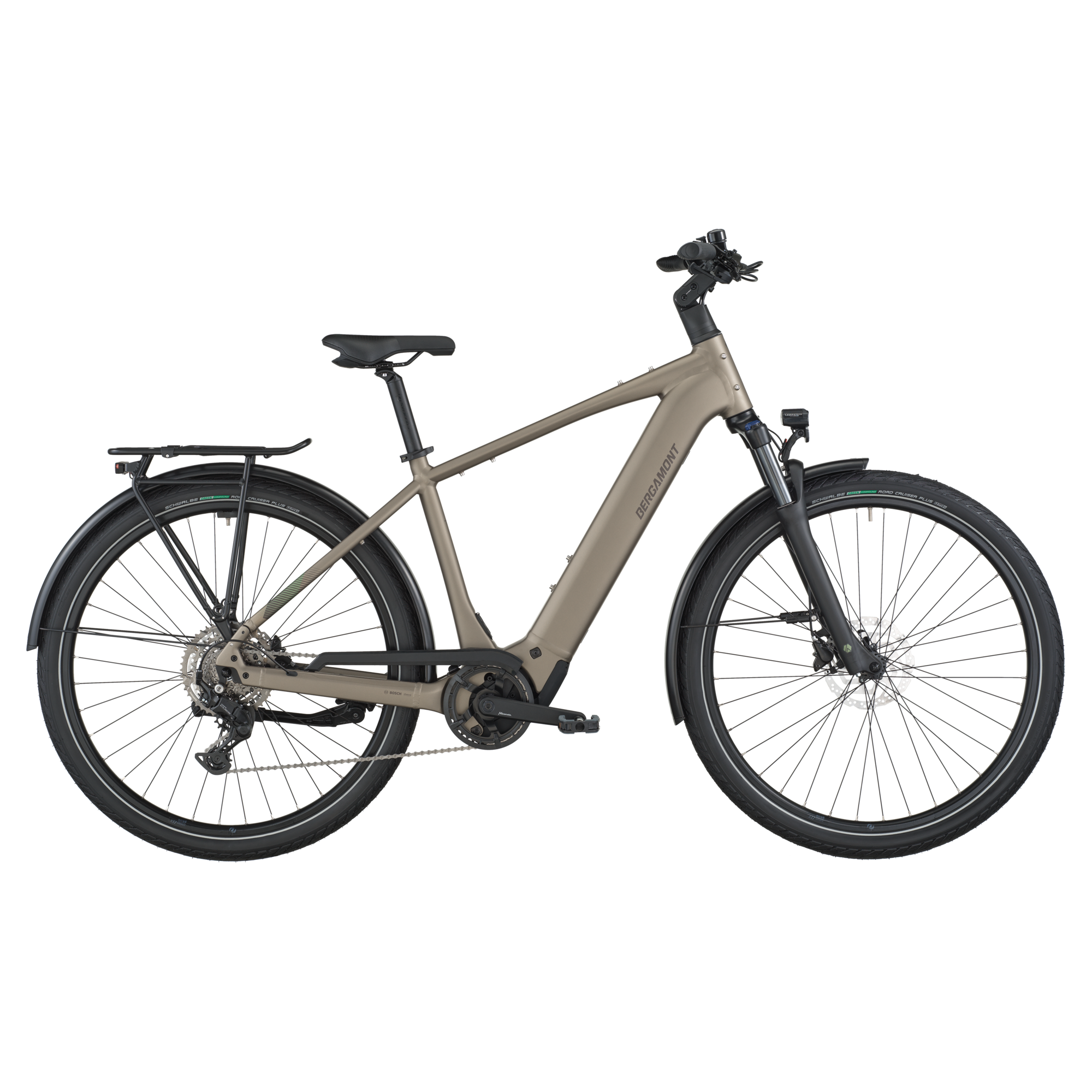

Bergamont E-Horizon Sport 30
Model : 425215
Key Features
- Super lightweight aluminum frame
- Suntour suspension fork with 100 mm travel
- Shimano Cues 1x9-speed drivetrain
- Bosch Smart System with efficient Performance Line motor
- Shimano hydraulic disc brakes
- 28" Schwalbe Road Cruiser Plus tires
- Child seat approved rear carrier
- LED lighting system front and rear with brake light function
1. Color : warm silver
2. Size
-
The E-Horizon Sport 30 is a fully equipped e-trekking bike with perfectly integrated components. It includes features such as LED lights with a rear brake light function that increase rider safety in urban environments. The rear carrier is approved for 27 kg and child transportation in combination with a Thule Yepp (Nexxt) 2 maxi seat. The classic derailleur drivetrain for efficient pedaling and shifting is a lightweight and proven concept, and the hydraulic disc brakes offer superior braking power and modulation even in adverse weather conditions.
The Bosch Performance Line electric drive system offers dynamic support.
The high-capacity Bosch PowerTube battery integrated into the frame can be removed for remote charging, while the battery cover remains on the bike to protect the empty battery bay from the elements. With the Bosch Smart System advanced connectivity features and upgrades are available: Use the eBike Flow App to control your bike or add optional extras like a Bosch PowerMore battery for increased range.
condition of usage 2 -
Frame
28", super lite AL-6061 tubing, PowerTube battery -

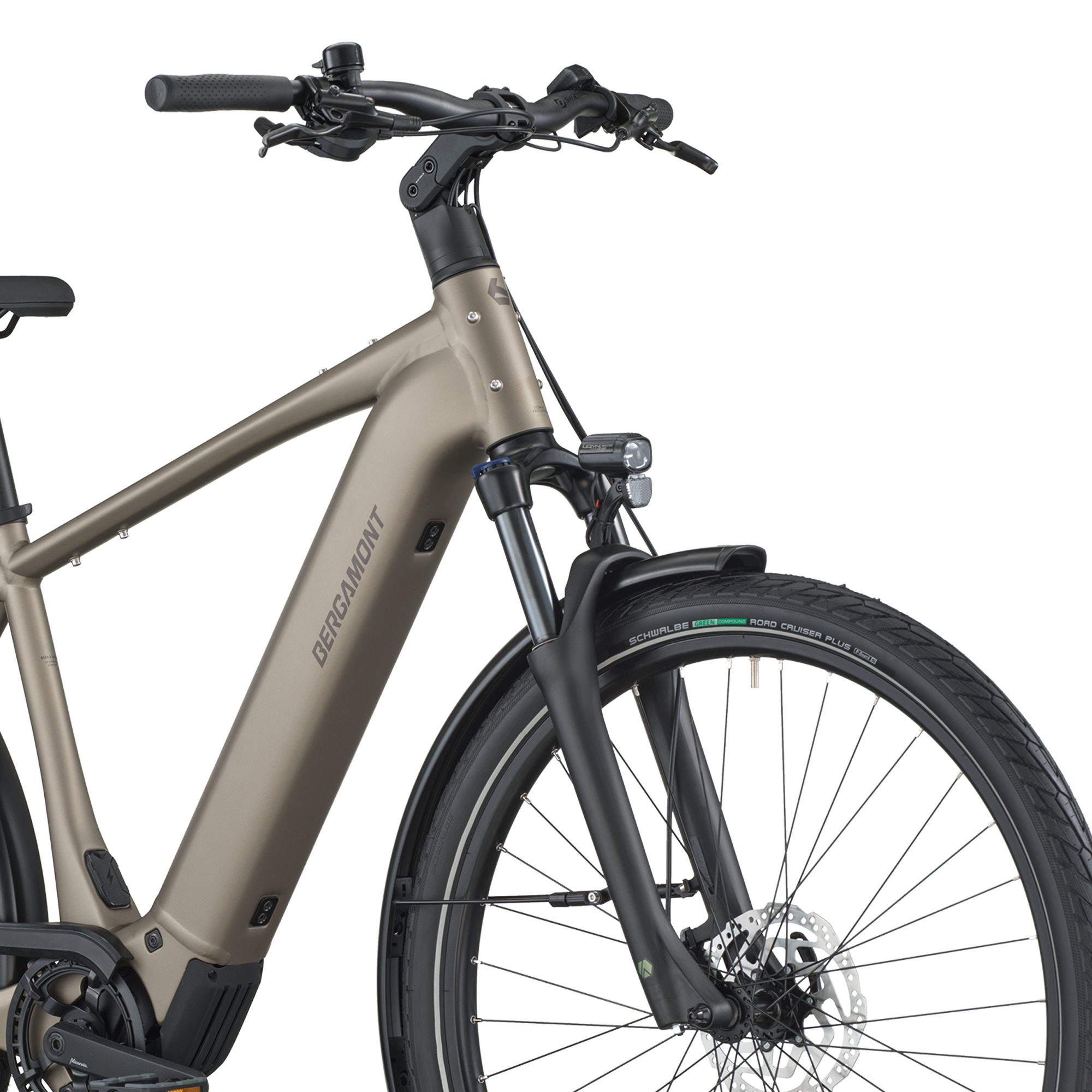

Fork
Suntour NVX32 NLO DS, 100 mm -
Drive Unit
Bosch Smart System, Performance Line (BDU346Y), 250 W, 36 V, max. 25 km/h -
Battery
Bosch PowerTube, 36 V Li Ion, 540 Wh
-
Display
Bosch Purion 200 -
Charger
Bosch Smart System, 2 A -
Rear Derailleur
Shimano Cues, RD-U4000, Shadow -
Shifters
Shimano Cues, SL-U4000, 1x9-speed, rapidfire plus-shifter -
Crankset
Miranda Virage, 170 mm, 38t -
BB-Set
Bosch, Isis -
Chain
Shimano CN-LG500 -
Cassette
Shimano Cues, CS-LG400-9, 11-46t -
Brake Levers
Shimano BL-MT200, hydraulic disc brake -
Brakes
Shimano BR-MT200, hydraulic disc brake -
Rotor
Shimano SM-RT10, 180 mm -

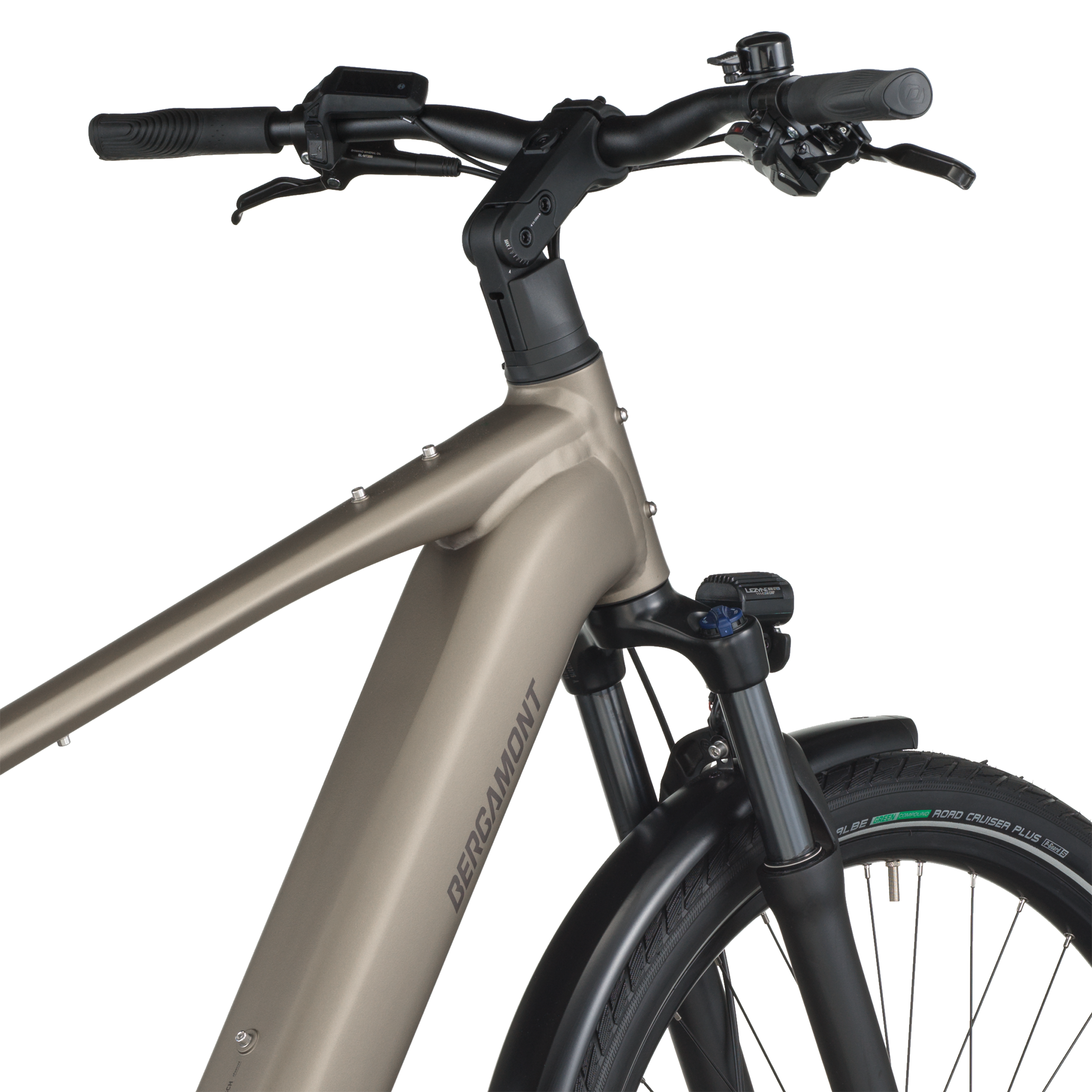

Handlebar
Syncros 3.0, riserbar, backsweep: 15°, rise: 12 mm -
H'stem
Syncros, with SP Connect mount, adjustable -

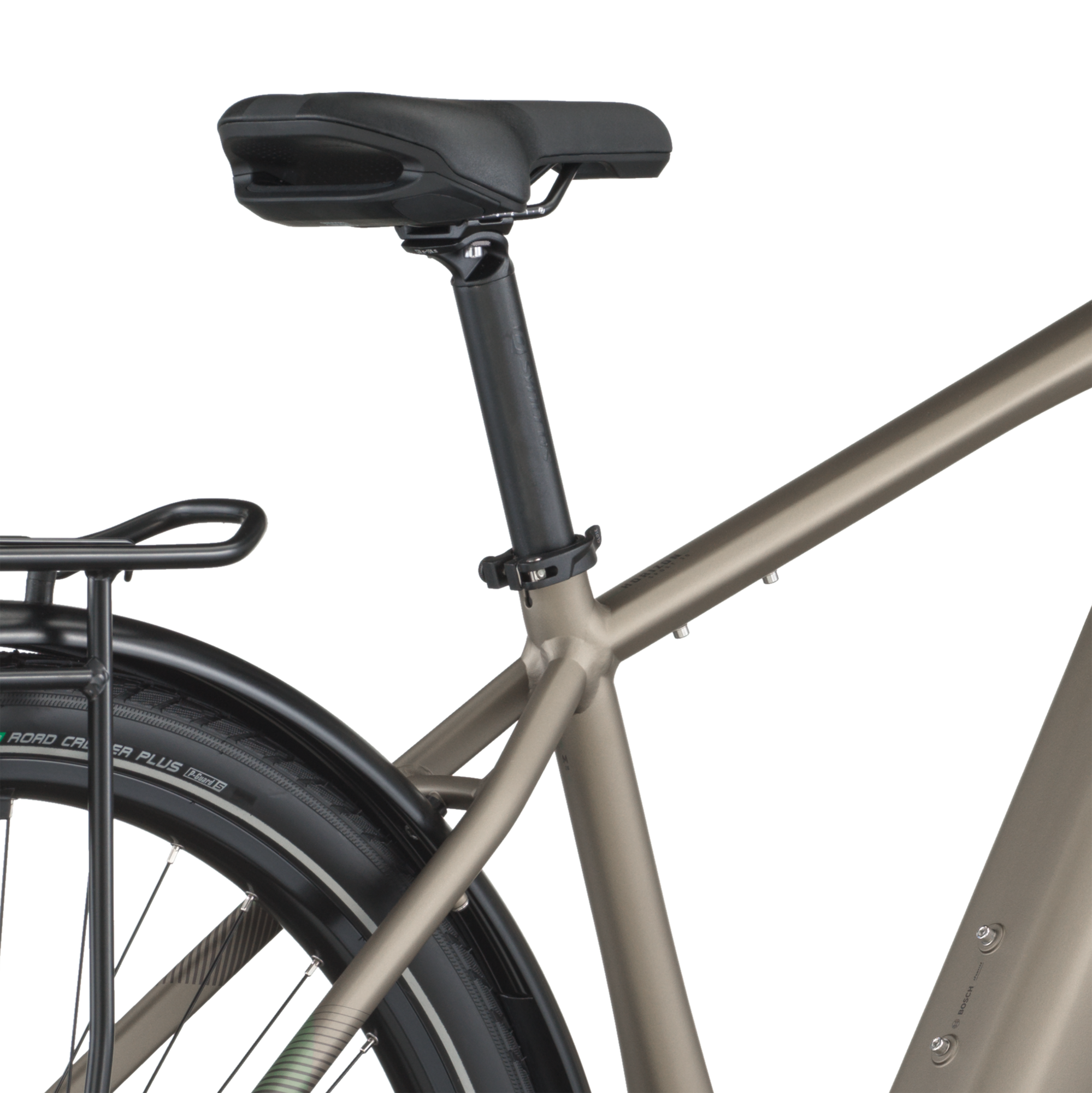

Seatpost
Syncros -
Seat
Syncros Capilano Trekking -
Headset
Acros, A-Headset, semi-integrated, tapered, with integrated cable routing -
Front Hub
Shimano HB-QC400, centerlock, disc, quick release -
Rear Hub
Shimano FH-QC300, centerlock, disc, quick release -
Spokes
Steel, black -
Rims
Syncros X17, disc, eyelets -
Front Tire
Schwalbe Road Cruiser Plus, reflective stripe, 55-622
Tube: Schwalbe AV19B Light -
Rear Tire
Schwalbe Road Cruiser Plus, reflective stripe, 55-622
Tube: Schwalbe AV19B Light -
Lights
Front: Lezyne Mini E300, 100 Lux, LED
Rear: LED, with brake light function -
Rack
Racktime / BGM Trekking Pro, Snapit 2.0 System -
Pedals
Trekking alloy -
Accessories
Kickstand: Syncros U-mount -
Approx weight in KG
28,8 -
Fender
Curana Apollo, with stainless stays -
Grips
Syncros Urban, Ergo, double density, lock-on -
Max. System Weight
130,0 kg
The overall weight includes the bike, the rider, the equipment and possible additional luggage.
Child Seat Allowed
Please refer to the chapter "intended use of your bike" in the general manual for details.
