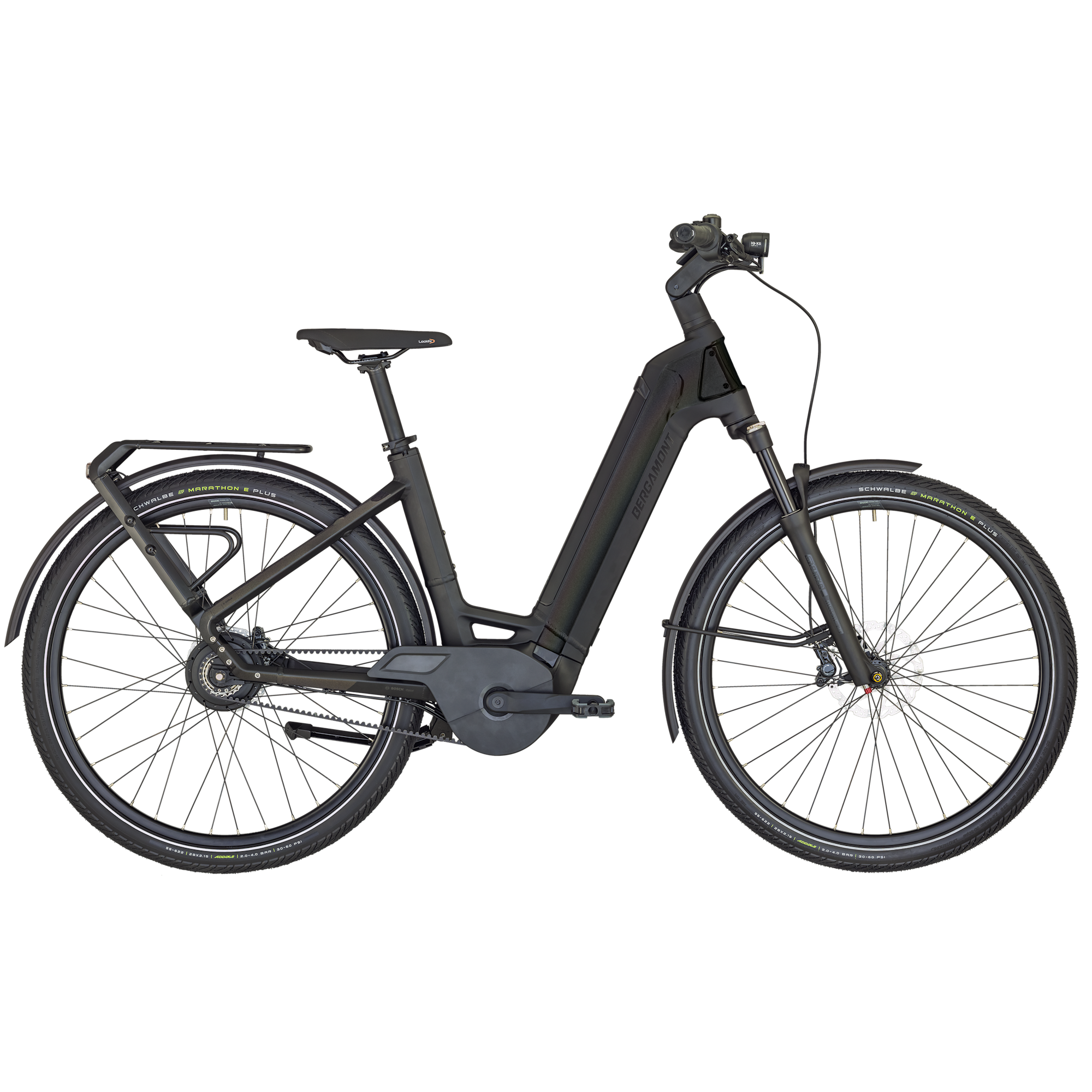

Bergamont E-Ville Pro Belt

Model : 290926

Bergamont E-Ville Pro Belt

Key Features

  • 28", lite AL-6061 tubing, PowerTube battery
  • Suntour Mobie 25 Air, 100 mm, Thru-axle
  • Enviolo Automatic, belt drive
  • Bosch BES3 Performance Line CX, 625 Wh battery
  • Shimano Alfine, hydraulic disc
  • Ryde Rival 23 rims, eNviolo Trekking hub
  • Schwalbe Marathon E-Plus, Reflex, 55-622
  • B&M IQ XS LED, 80 Lux / B&M Toplight LED with brake light

1. Size

Size chart
Find a dealer
SPECIFICATIONS
  • The state-of-the-art low step-through bicycle with maximum integration, design and versatility. The combination of the latest Bosch drive generation, belt drive and automatic shifting meets the highest demands and sets standards in dynamics, agility, and comfort. Maximum system weight: 160 kg

    condition of usage 2

  • Frame

    28", lite AL-6061 tubing, PowerTube battery

  • Fork

    Suntour Mobie 25 Air, LOR DS, 100 mm, 15x100 mm axle

  • Drive Unit

    Bosch Performance Line CX, Gen. 4, BES3, 250 W, 36 V, max. 25 km/h

  • Battery

    Bosch PowerTube, 36 V Li Ion, 625 Wh

  • Display

    Bosch LED Remote with Kiox 300 display

  • Charger

    Bosch Standard Charger, 4A

  • Shifters

    Enviolo, automatic

  • Crankset

    FSA CK-745, belt, 50t

  • BB-Set

    Bosch, Isis

  • Chain

    Gates CDX Carbon Drive Belt, Center-Track

  • Cassette

    Gates CDX, 24t

  • Brake Levers

    Shimano Alfine, BL-S7000, hydraulic disc brake

  • Brakes

    Shimano Alfine, BR-S7000, hydraulic disc brake

  • Rotor

    Front: Shimano SM-RT54, 180 mm
    Rear: Shimano SM-RT26, 160 mm

  • Handlebar

    BGM Pro, riserbar, backsweep: 15°, rise: 5 mm

  • H'stem

    BGM E-Bike, adjustable

  • Seatpost

    BGM Pro

  • Seat

    Selle Royal Lookin BGM Basic Athletic

  • Headset

    Acros, A-Headset, semi-integrated, 1.5", with integrated cable routing

  • Hub (Front)

    Shimano HB-MT400, centerlock, disc, 15x100 mm axle

  • Hub (Rear)

    Enviolo Trekking Automatic, 6-bolt, disc

  • Spokes

    Sapim Leader

  • Rims

    Ryde Rival 23, disc, eyelets

  • Front Tire

    Schwalbe Marathon E-Plus, Smart Dual Guard, reflective stripe, 55-622
    Tube: Schwalbe AV19

  • Rear Tire

    Schwalbe Marathon E-Plus, Smart Dual Guard, reflective stripe, 55-622
    Tube: Schwalbe AV19

  • Lights

    Front: B&M IQ-XS, 80 Lux, LED
    Rear: B&M Toplight Line brex, LED, with brake light

  • Rack

    Racktime E-Ville carrier, Snapit 2.0 System

  • Pedals

    Trekking alloy

  • Accessories

    Kickstand: Syncros

  • Approx weight in KG

    29,2

  • Color

    shiny rainbow black

  • Fender

    Racktime Alumee

  • Frame size

    46/50/54/58 cm

  • Grips

    BGM Comfort, Ergo, double density, clamp version

  • Max. System Weight

    160,0 kg
    The overall weight includes the bike, the rider, the equipment and possible additional luggage.
